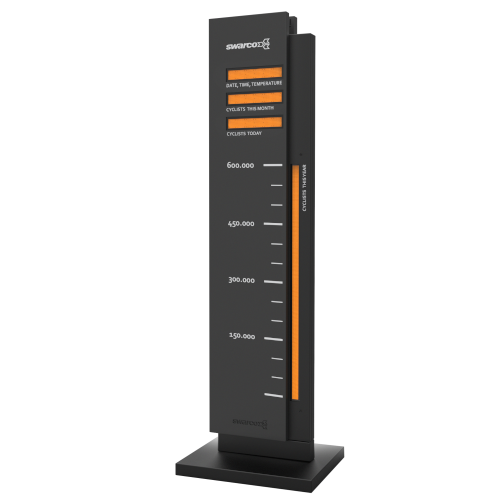

CYCLEMETER

Intelligent Solutions for Cyclists

CYCLEMETER Intelligent Solutions for Cyclists

Increased traffic in large cities, in combination with high demands on environmental improvements and mobility, has forced a change in transport policy. Cycling is a quick, efficient and environmentally friendly way to get around. Many cities are therefore prepared to invest in their road networks, infrastructure and not least in the technical installations to promote cycling.

The Cycle counts that are collected from devices such as cycle meters, traffic controllers or separate measuring stations can be presented on the web or in apps to provide an overview of the city’s cycle traffic in real time. Historical data is stored in a central database which provides access to valuable information, 24 hour a day all year around, for the city’s traffic planners and future research.

phonelink

 Latest
LED technology

local_florist

High Energy-
Efficiency
​​​​

star

Custom
Design

directions_bike

Traffic Data
for Minimum 60 days

Benefits

  • Low energy consumption
  • Latest LED technology with optimal visibility and dimming
  • Patented light-optical system ensures maximum brightness
    and longevity of the LED
  • Great visibility even at low standing sun
  • Variable barometer scale
  • Traffic data for minimum 60 days and inin several different formats
  • Custom design, logo, city icon, texts etc. with 3M foil on front panel
  • Made of aluminum
  • Web interface for remote browsing of traffic data and Operation and Traffic Monitoring

Technical Details

INFORMATION PANEL

  • 3 alphanumeric lines
  • Display of up to 8 characters/line
  • Character height 48 mm
  • Scrolling and blinking effects
  • Amber LED

GRAPHIC BAR

  • Total resolution 288x8 pixels
  • Pixel pitch 4 mm
  • Amber LED

VOLTAGE

  • 230 VAC

ENERGY CONSUMPTION

  • Normal consumption approx. 60 W; 150 W with all LEDs lit

DETECTOR

  • Fiber-optic or loops

MECHANICAL CHARACTERISTICS

  • Housing material AlMg3
  • Housing color RAL9005 (other colors available upon request)
  • Mechanical protection IP54
  • Temperature range: -30°C to +55°C

FRONT AND REAR

  • The front may include several rectangular holes fitted with 4 mm antiglare tinted polycarbonate for optimal contrast and visibility.

DIMENSIONS REMOTE

  • 2200 x 630 x 164 mm [h x w x d]

MONITORING

  • Monitored through web access; sends traffic data to Mastra.
  • Built-in modem for remote control and operational monitoring.

OTHER CHARACTERISTICS

  • Custom graphics at the top of the housingm (e.g. city crest, logos, ...)
  • Automated process of data transfer
  • Single sided or double sided
