SWARCOPLAST KSP 230 HighLine

High-Performance Cold Spray Plastic

SWARCOPLAST KSP 230 HighLine High-Performance Cold Spray Plastic

SWARCOPLAST KSP 230 HighLine is a sprayable, high-performance cold plastic marking system. Through the combination of premium raw materials, it is designed for maximum performance and efficiency.

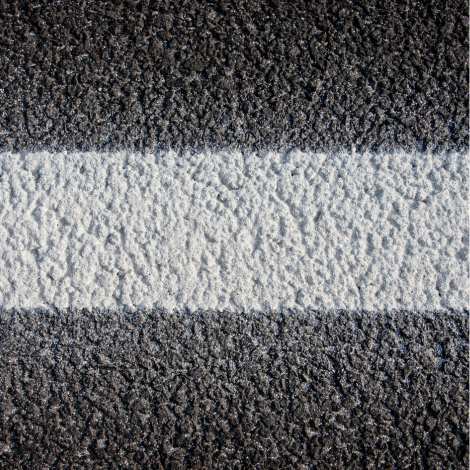

The solvent-free, multi-component reactive marking material cures into a thin-layer, thermoset road marking. The cold spray plastic is suitable for universal use on bituminous substrates as well as concrete pavements. In the Type II version, particularly robust reflective glass beads with a high refractive index nd > 1.7 (Class B according to EN 1423) ensure exceptional visibility at night and in wet conditions — ideal for roads with heavy traffic and increased accident risk.


Product features at a glance:

  • Maximum performance thanks to a precisely coordinated formulation and high-quality raw materials

  • Thin-layer, thermoset marking with fast curing and high cost efficiency

  • Premium reflective glass beads provide excellent retroreflection values

  • Solvent-free

  • Suitable for bituminous substrates and concrete pavements

  • Universal application possibilities with all common KSP techniques (e.g. 98:2, 1:1)

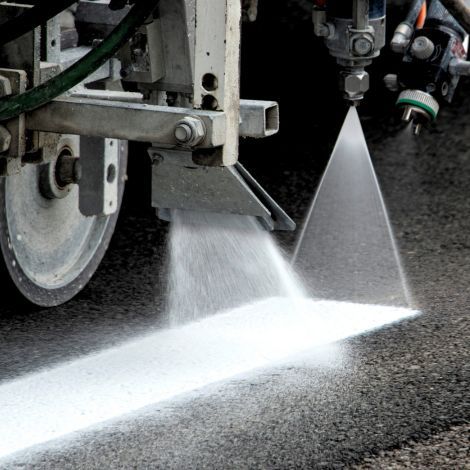

  • Application by spray or injection process

  • Supplied in airless quality for a uniform spray pattern and reproducible results


Find more information here on

  • Container collection/return

  • Complaints (claims)

  • Material consumption

  • Handling of different containers

RPA – test reports by BASt (German Road Institute)
SWARCOPLAST KSP 230 HighLine

Test-report-no.


Layer
thickness

Consumption**

Drop-on material (DOM)

Traffic technological properties




mm


Material

DOM

Identification
(divergent identification possible –
see relevant test report)

New condition


Used condition


kg/m²

kg/m²

Type I markings

2024 1DY 11.09

0.6

0.948

0.50

SWARCO SOLIDPLUS 100 425-1180
T18 MK30		P6, S1, R5, RW6, Q5, T2*

P6, S1, R5, RW5, Q5

Type II markings

2024 1DY 11.10

0.6

0.948

0.50

SWARCO SOLIDPLUS NEXT 100
425-1180 T18 MK30 		P6, S1, R5, RW6, Q5,
T2*		P6, S1, R5, RW5, Q5

2025 1DY 07.10

0.6

0.948

0.50

SWARCO SOLIDPLUS NEXT 100
425-1180 T18 MK30		P7, S1, R5, RW6, Q5,
T2*		P7, S1, R5, RW6, Q5

*The drying time shown is a laboratory value and may vary depending on climatic conditions.
​​​​​​​
**Actual material consumption depends on the application technique, machine settings, and the resulting actual layer thickness applied, as well as
any NSM sprinkled on afterward.
​​​​​​​
The basis for classifying the marking systems according to their traffic-related properties in new or used condition was the table “Measured values” in the appendix “Results for BASt test number ...” of the respective BASt test certificate.
