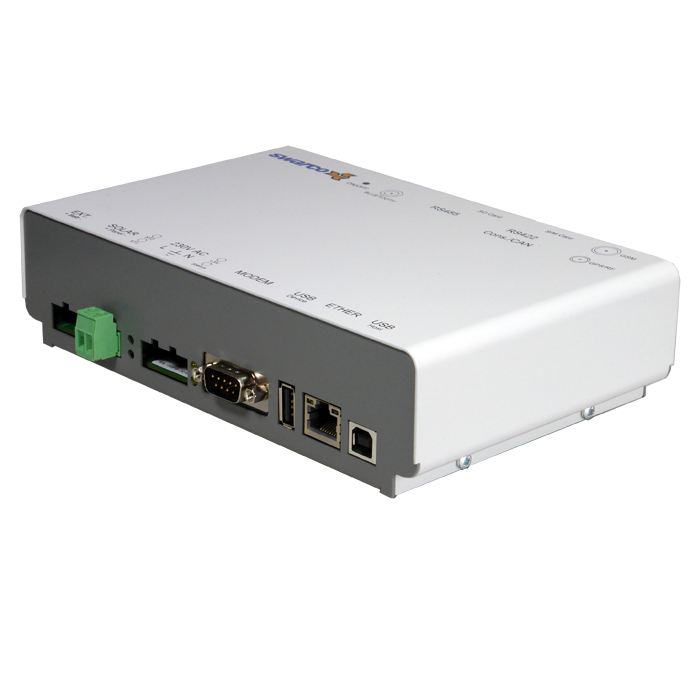

PRIMOS SCC
Outstation Optimally Suited for Traffic Applications with Limited Space


The PRIMOS SCC outstation is optimally suited for traffic applications with limited space such as tunnel niches, or for upgrading existing installations. It offers a high degree of flexibility for project and client specific requirements: PRIMOS SCC can be used in a 19“ swing frame rack as well for DIN rail mounting, as stand-alone solution or as part of a larger system.
FIELDS OF APPLICATION:
- Traffic data measuring systems
- Axle loads measuring systems
- Environmental data measuring systems
- Ramp metering systems
- Traffic control in tunnels / on ramps
- Overheight warning systems
- Deer warning systems
- Wind warning systems
- HGV parking systems
FUNCTIONS:
- Operational messages and function monitoring
- Communication with central (software) systems
- Control of
- Variable message signs (VMS)
- Barriers
- Lane lights
- Detectors
- Sensors
- Interlocking of prohibited signaling states
- Operational log
- Manual control
Benefits
- Flexible adaptation to project and client specific requirements
- Available as 19“ swing frame rack or DIN rail version
- Stand-alone solution or as part of a larger system
- Interfaces for telecommunications line such as copper cable and fiber-optic cable, for Ethernet, WAN, GSM, GPRS, UMTS
- Additional interfaces can be extended project-specifically if needed
- Communication with different data protocols such as TLSoverIP, TC57 (IEC870), WANCOM, http
- Web interface: System status and configuration via HTTP
- EMC (electromagnetic compatibility) compliant design
- Easy set up and service
Technical Details
Controller type | SCC Air DC |
Supply voltage | (10 - 30) V DC |
CPU | ARM-9 architecture with MMU and ARM926ES core |
Digital inputs / outputs | 2 |
Serial interfaces | 1 serial port (RS-232) |
Clock rate | 400 MHz |
RAM | 32 MB |
Flash disk | 128 MB |
Mass storage | Slot for SD card |
Operating system | Linux |
Operation indicator | Function LED |
Others | Powerfail monitoring, watchdog timer |
Ethernet | 10BaseT / 100BaseTX via RJ45 connection |
USB | 1 USB-Host (Full Speed and Low Speed) |
Power consumption (max) | 2.5 W |
Operating / storing temperature | -25°C to +85°C |
Dimensions (H x W x D) | approx. 192 mm x 130 mm x 57 mm |
Design | DIN-rail or 19“ swing frame rack |
Mobile communication | Modem for GSM, UMTS, HSDPA (3G) optional, GPS optional |
