GPS Modules are easy-to-use, microprocessor-based Universal Time Base (UTB) devices that provide accurate time-of-day information for traffic signal controllers. The module retrieves time signals from the atomic clocks of the United States National Institute of Standards broadcast on the GPS satellite network. The modules then decode the signals and interfaces with the traffic control equipment.

  • Synchronize time-of-day to GPS
  • Update daylight savings and leap second time corrections automatically
  • Comply with Caltrans requirements for global positioning latitude and longitude

Readily available time and date information

GPS Antenna

  • Small exterior antenna with versatile mounting options
  • Coaxial cable with BNC adapter (Stand-Alone) or SMA connector (2070-7G)
  • Mounting hardware
  • Gasket attached to underside of antenna housing

Query (“Q”) and Set (“S”) commands

User set parameters in internal FLASH

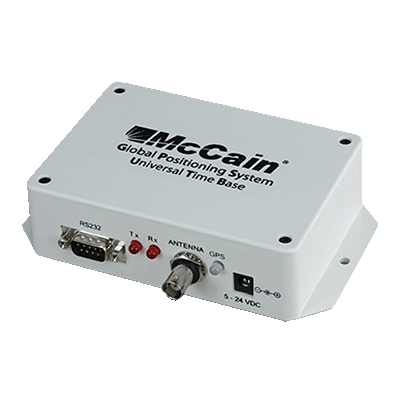

Stand-Alone housing designed for mounting indoors or in a weatherproof cabinet

Installation

  • Stand-Alone: Mounts directly to any surface with mounting flanges (2)
  • 2070-7G: Controller’s communication slot

Communication Interfaces

  • Stand-Alone: RS232
  • 2070-7G: RS485 (uses one 2070 modem channel, second channel brought out to front panel)

Front Panel Interface

Cabinet Interfaces

    Dimensions6” L x 3.5” W x 1.5” H (Stand-Alone)
    Form FactorEIA rack mount form factor (2070-7G)
    PowerStand-Alone: +5 VDC to +36 VDC (5 VDC @ 80mA)
    2070-7G: + 5 VDC @ 80mA
    EnvironmentOperating Temperature: -40° C to +85° C
    Humidity: 0 to 95% (non-condensing)
    WeightStand-Alone: 6 oz (± based on final module selection)
    2070-7G: 8 oz (± based on final module selection)


      • PC configuration and power/data communication cable for Stand-Alone version
      • Data NEMA communication cable for Stand-Alone version
      • PC configuration cable for 2070-7G
