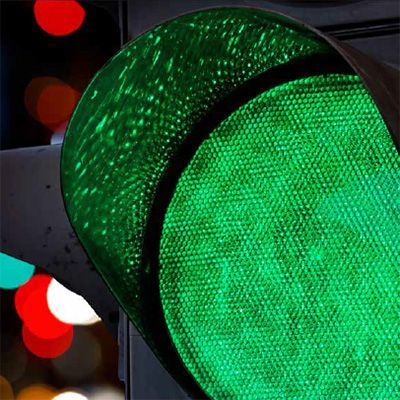

Elite Signal Head

By using the latest in LED technology, the Elite signal solution offers significantly reduced power consumption over conventional tungsten halogen lamps and previous LED models. Power savings of up to 85% are achievable, compared to traditional tungsten halogen lamps, resulting in lower operating costs and reducing the environmental impact.

With one of the best Elexon codes in the market, this UK LED signal solution provides improved reliability along with reduced operating costs. The Central Light Source technology delivers a far superior optical performance compared to standard halogen and previous LED signal solutions.

The Elite signal head continuously monitors its own LED components. If failure occurs the internal fuse ruptures within the LED optic module itself. Maximum power efficiency is achieved when the signals are driven by a PTC-1® or PTC-1® Lite controller as this provides full integral lamp monitoring without the need for any additional components.

Extra Low Voltage (ELV)

The ELV version supports AC and rectified AC ensuring compatibility with the PTC family of controllers and others without the need for extra hardware. It also offers the additional benefit of improved on-street safety. This signal technology supports Clients looking to deliver safety at the roadside whilst reducing the costs and the environmental impact of their traffic infrastructure.

Low Voltage (LV)

An optional Lamp Emulation Module (LEM) is also available that enables the 230V Elite to be used with other controllers including Peek’s TSC3 and TSP, and Siemens’ ST800/ST900. This unit monitors the current drawn by the optic and in the event of a failure, ceases to provide halogen emulation to the controller, enabling the fault to be detected. In cases where a Peek TRX controller is in situ, a new lamp monitoring module (LMM) can be used to monitor the Elite optics without the need for additional LEMs.

Retrofit solution

Save money and reduce environmental impact by retrofitting into your current Elite signal bodies on street. The Elite door and optic assembly fits neatly into our standard Elite heads; reducing costs and installation time and supporting the need to get more from the existing infrastructure. With the addition of being able to supply and retrofit LED ‘WAIT’ units to a majority of the traditional incandescent units, we are able to offer a complete low voltage LED conversion package.

Added value

The proven ability of LED technology to reduce running costs and improve longevity in service has enabled us to bring value added products to the traffic industry. The focus on green technologies is imperative to the success of meeting key performance indicators and reducing carbon footprint. The Elite range offers flexibility and efficiency, making it possible for you to replace or retrofit in any situation.

Features & Benefits

Reduced energy consumption

Long lifespan and highly reliable – 7 year warranty available

AC and rectified AC supported for ELV sites (PTC and competing controllers)

Central Light Source architecture

Integrated LED monitoring

Elite door assembly retrofits into
existing signals

Bright and highly visible illumination

Uniform optical output

Specifically designed to meet European and
UK standards

product is CE marked

Range includes 200mm
red, amber and green modules compliant to EN12368 and 300mm white (regulatory)

White regulatory available as 48VAC and can be used with 230VAC
(optional transformer kit required).
