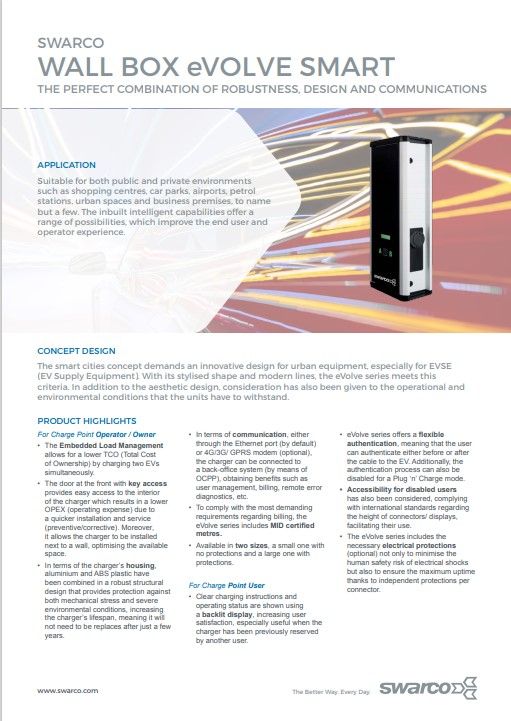

eVOLVE WALLBOX

A Robust Multipurpose WallBox Solution

eVOLVE WALLBOX A Robust Multipurpose WallBox Solution

The eVolve WallBox provides a durable enclosure, robust in design and composite to withstand harsh weather conditions. Equipped with latest communication and safety technologies, these units ensure that all charging takes place in an easy and safe manner.

With advanced communication capabilities for remote monitoring, this solution also offers excellent opportunity for personalised branding.


Technical Details


Hardware

  • Backlight LCD display
  • Kwh consumption in real time
  • Indicators: “Available”, “Reserved”, “Not available”
  • Instructions for use displayed on screen
  • User ID
  • Compatible with Mode 3 IEC 61851-1 (Certified)
  • Type I, Type 2 connectors, in compliance with IEC 62196-2 regulations
  • IK10 Vandal-proof aluminium & ABS
  • Protection degree: IP54 and anti-graffiti finish
  • RFID identification and pre-payment
  • Mechanical locking of the Type 2 socket
  • Circuit breaker and earth leakage protection
  • Customisable


Software

  • Built-in Ethernet and RS-485 communication systems, 3G (optional)
  • Connected to SCADA control software
  • Remote control and monitoring of the unit
  • Integration with third-party software (OCPP,XML, JSON)
  • Compatible with OCPP 1.6
