CAIMAN 2 PLUS

HIGH-PERFORMANCE WIDE BEAM STOP+MOTION RADAR DETECTOR

CAIMAN 2 PLUS HIGH-PERFORMANCE WIDE BEAM STOP+MOTION RADAR DETECTOR
The CAIMAN-2 Plus high-perfomance Stop+Motion radar detector offers, compared to the standard product familyCaiman-Pro, a significantly larger detection area and higher performance for special applications. With its wide beam angle, it is particularly suitable for lane-selective detection with extended requirements on multiple lanes and roads simultaneously.

Both moving and stationary objects are detected and tracked in the entire detection range. The following data is provided:  Amount, occupancy, speed, presence, distance, gap and wrong-way driver trigger. The objects are differentiated into up to 7 classes (pedestrians, bicycles, motorcycles, passenger cars, vans, trucks / buses, articulated trucks). In addition, the CAIMAN-2 Plus offers various freely configurable event triggers, optionally  depending on speed and object class, for presence detection, estimated time of arrival, congestion length and wrong-way driver detection. Thanks to its flexible mounting positions, it offers a wide range of applications and installation options.It detects objects of the classes passenger cars and trucks in a detection range of 20 m up to 260 m.

TYPICAL APPLICATIONS

  • Application in intersection area with extended requirements for stop line detection, advanced detection, vehicle counting
  • Calculation of estimated time of arrival (ETA) / dilemma zone detection
  • Traffic management and traffic data acquisition with detection of vehicle speed, counting, occupancy and congestion length
  • Special applications such as wrong-way driver detection, congestion detection

FEATURES

  • High-performance object detection with a wide beam angle of 110° over several lanes and roads
  • Stop+Motion function (simultaneously up to 256 moving and stationary objects)
  • High precision measurement of vehicle speed, distance to
    the sensor, horizontal and vertical angle
  • Data output: number, occupancy, speed, presence, distance,
    gap, wrong-way driver trigger and congestion length
  • Multiple options for detector positioning and installation
    (e.g. mast arm, vertical post)

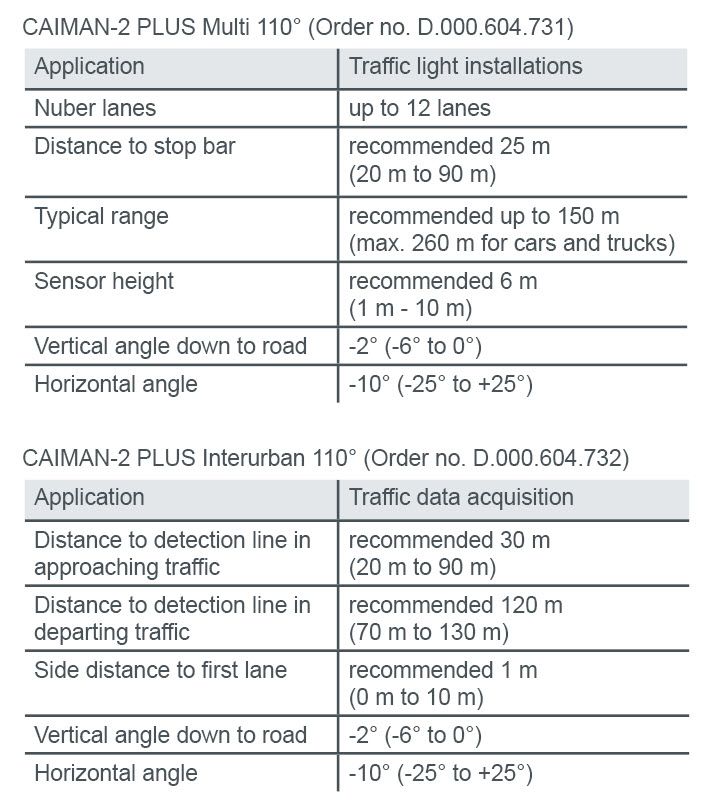

TYPICAL PARAMETERS

DETECTOR POSITION

         Centered mounting                        Sideways mounting

Benefits

add

Stop+Motion
Function

star

Simultaneous Detection
accross up to 12 Lanes
​​​​

zoom_in

Challenging
Applications

Technical Details
